Whether you’re working with CH341A-based programmers or dealing with W25, MX25, and other 1.8V-compatible flash memory devices, this adapter ensures that your programming process is smooth, accurate, and efficient. In this guide, we’ll explore everything you need to know about the 1.8V Adapter for CH341A, including its key features, compatibility, and how it can enhance your workflow.

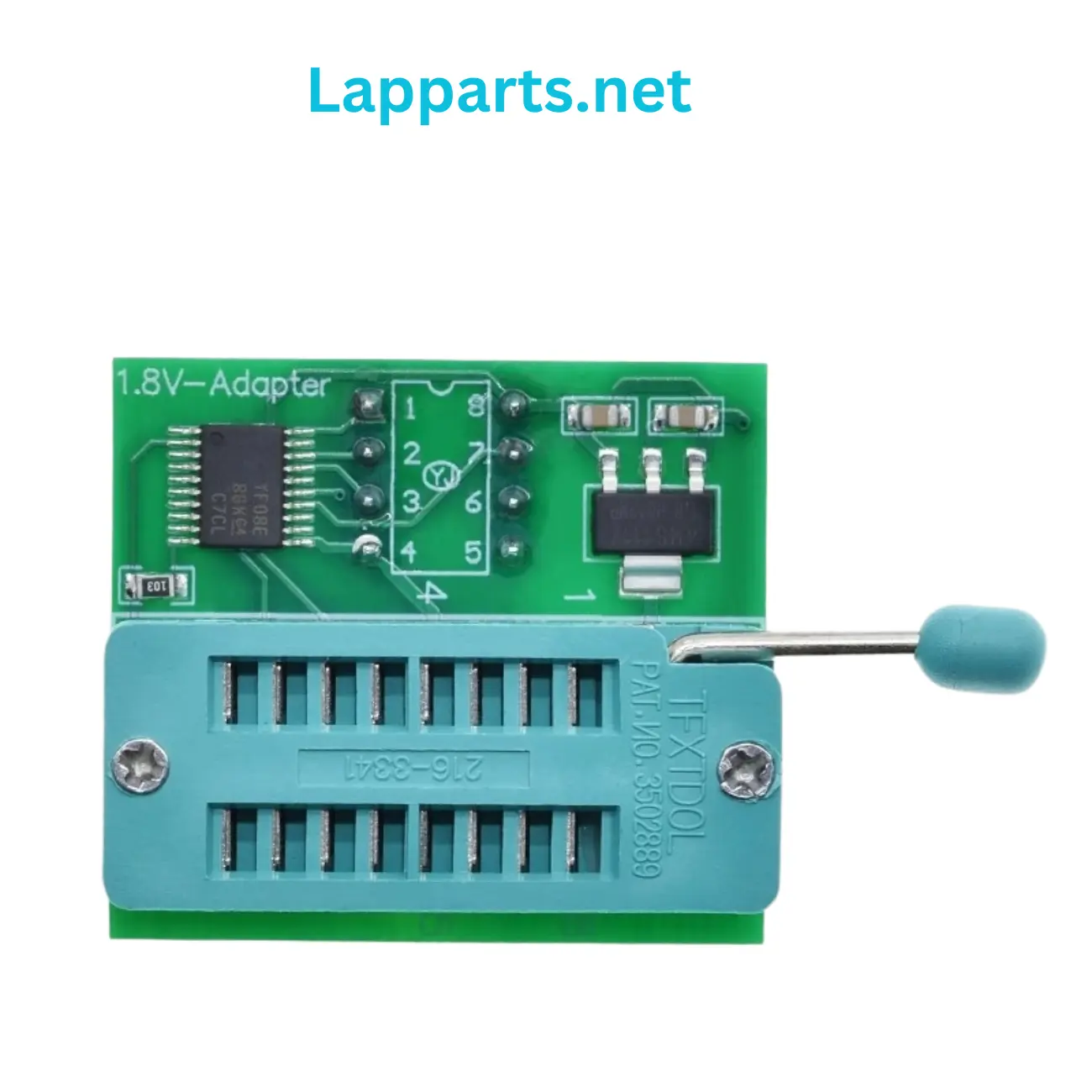

What is the 1.8V Adapter?
The 1.8V Adapter is a specialized interface that allows the CH341A chip to communicate with 1.8V SPI flash memory devices. The CH341A is a widely used USB-to-serial/SPI converter that powers many popular programmers and development tools. However, not all flash devices operate at the standard 3.3V or 5V levels. Some, especially modern and low-power variants, require a 1.8V supply to function correctly.
Without the proper adapter, attempting to program a 1.8V SPI flash chip using a standard programmer can lead to incorrect voltage levels, which may result in failed programming attempts or even damage to the chip. The 1.8V Adapter solves this problem by providing the correct voltage level and ensuring a stable and reliable connection between the programmer and the target device.

Key Features of the 1.8V Adapter
Supports 1.8V SPI Flash Devices: Specifically designed for 1.8V operation, this adapter is ideal for working with modern low-voltage flash memory chips.
Compatibility with CH341A Programmers: Works seamlessly with CH341A-based programmers, including those used in the TL866CS, TL866A, and series.
SOP8 and DIP8 Package Support: The adapter is compatible with both SOP8 and DIP8 flash chips, making it suitable for a wide range of applications.
Easy to Use: Simply connect the adapter to your programmer and the target flash chip, and you’re ready to start programming.
Reliable and Durable: Built with high-quality components to ensure long-lasting performance and stability.
Plug-and-Play Design: No additional configuration or software is required—just plug it in and start working.

Why You Need a 1.8V Adapter for CH341A
Many modern SPI flash devices are designed to operate at 1.8V to reduce power consumption and improve efficiency. However, most standard programmers and development boards are built for 3.3V or 5V operation. This voltage mismatch can cause a variety of issues, including:
Incorrect programming: The flash chip may not respond correctly to programming commands.
Data corruption: Inconsistent voltage levels can lead to errors during read or write operations.
Potential damage: Applying the wrong voltage can damage the flash chip or the programmer itself.
The 1.8V Adapter for CH341A bridges this gap by providing the correct voltage level and ensuring that your programming process is both safe and effective. Whether you’re working on embedded systems, firmware development, or hardware debugging, this adapter is an essential tool in your kit.

Compatible Devices and Applications
The 1.8V Adapter is compatible with a wide range of 1.8V SPI flash devices, including but not limited to:
W25 Series: Such as W25Q16JV, W25Q32JV, and other 1.8V variants.
MX25 Series: Including MX25L1606E, MX25L3206E, and similar models.
Other 1.8V SPI Flash Chips: Designed for low-power applications and modern embedded systems.
This adapter is commonly used with the following programmers and development tools:
TL866CS and TL866A: Popular chip programmers used in electronics repair and development.
Programmers: Known for their ease of use and compatibility with a wide range of chips.
CH341A-based Programmers: Widely used in DIY and professional electronics projects.
Whether you’re working on firmware updates, chip cloning, or hardware testing, the 1.8V Adapter ensures that your 1.8V SPI flash devices are programmed correctly and efficiently.
