SVOD 4 Professional Programmer High-Speed ARM7 Processor & 480MHz USB 2.0 High-Speed Work with EC ITE, ENE, NUVOTON, MEC, EPFxxx, Support SPI, I2C, SMBUS, NAND, EMMC

SVOD 4 Professional USB Programmer EC ITE, ENE, NUVOTON, MEC, EPFxxx, Lattice. battery, read POST codes.

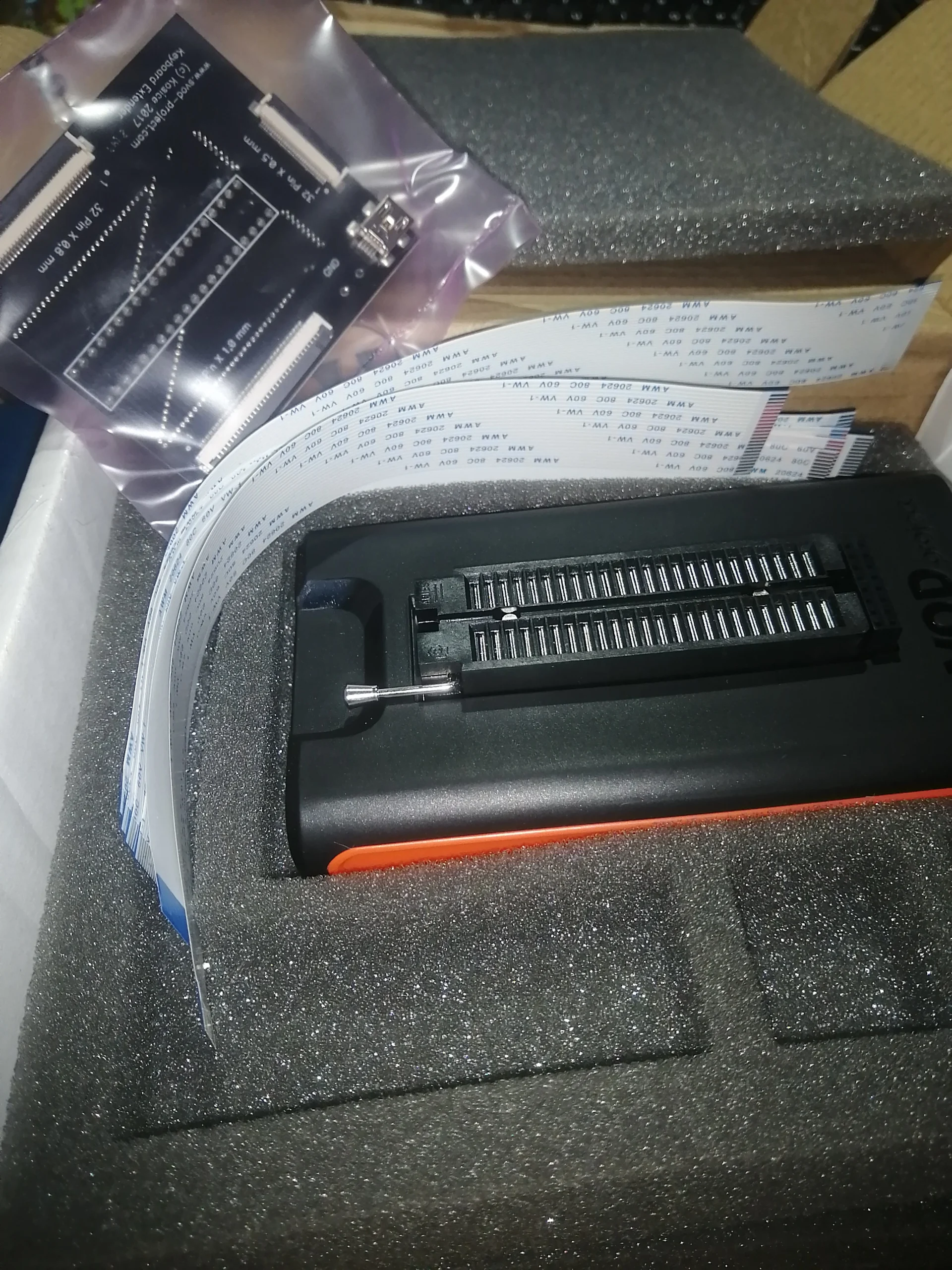

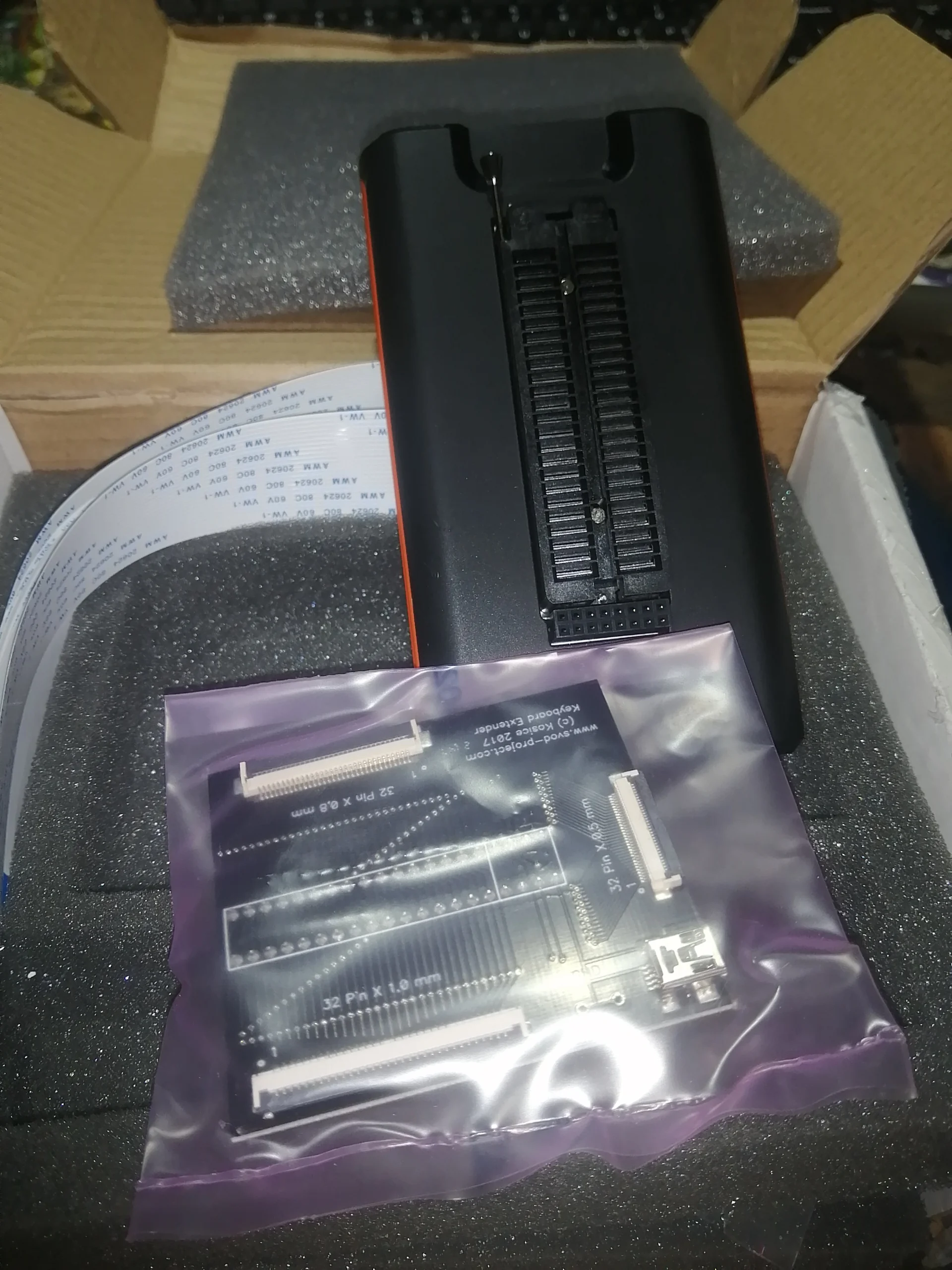

The package includes

1 pcs Programmer SVOD Ver. 4

1 pcs USB Connection cable

1 pcs Extended board of ports for keyboard module

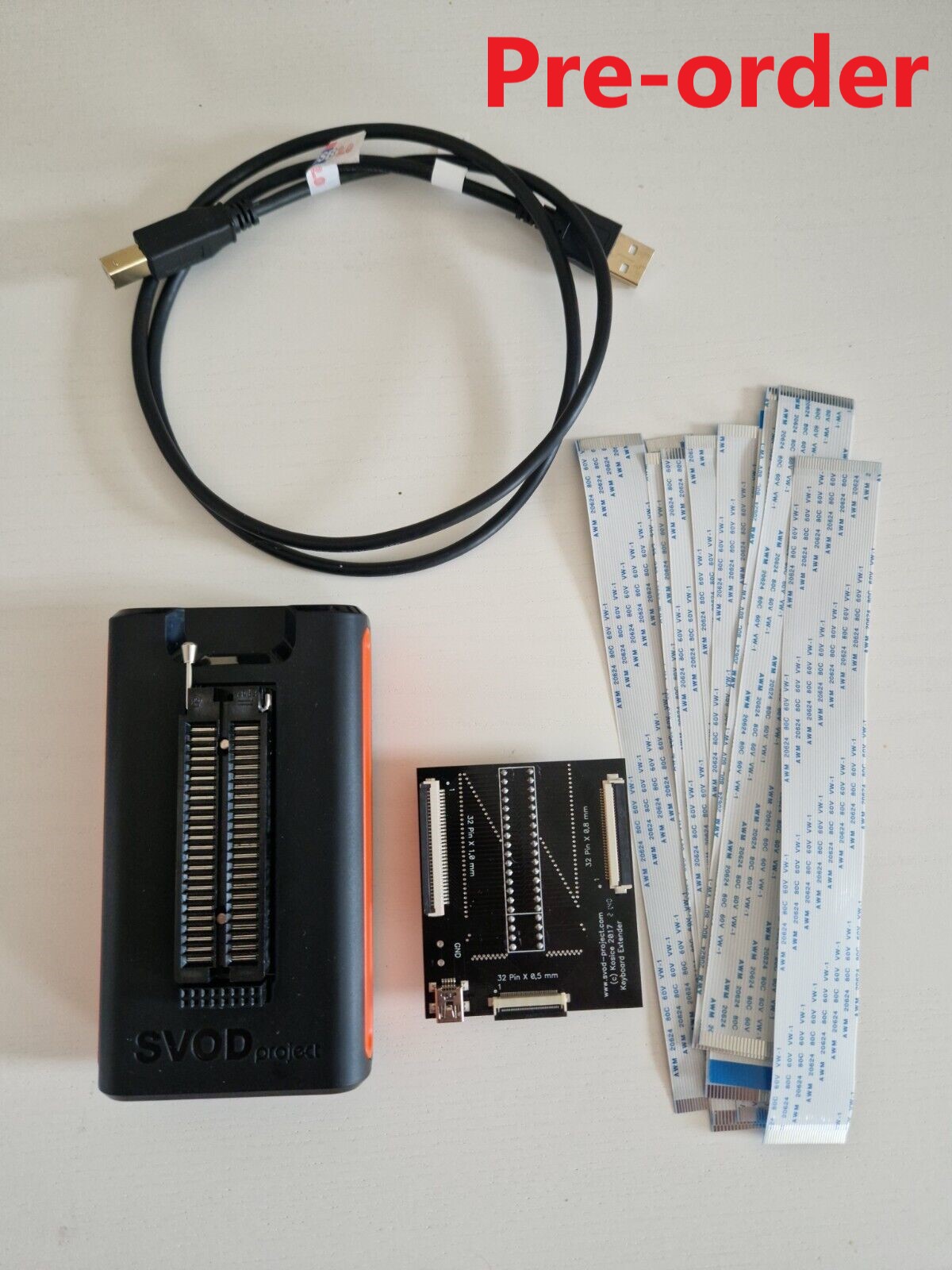

Flex cables: 34-pin, 32-pin, 30-pin, 26-pin (all cables you see in the picture).

Specifications

port for connecting to a computer: USB 2.0 high speed,

high-speed ARM7 processor at 480MHz,

connection to IC: zif 48 + 16 pin connector

number of input-output ports: 56

supply voltage: 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.25v, 1.2V, 0.8V.

work with EC ITE, ENE, NUVOTON, MEC, EPFxx Supported protocols:

SPI, I2C, SMBus, 1-Wire, NAND, NOR, EMMC, JTAG, UART, CAN, parallel synchronous and asynchronous protocols.

Automatic detection of “bad contact” when connecting IC.

Supported

KB9010,KB9012, KB9016, KB9018, KB9022, KB9028qc

NPCE288N/NPCE388N

ITE it8380E programmable

ITE it8380VG programmable

ITE it8386 programmable

ITE it8522 programmable

ITE it8580 programmable

ITE it8585e programmable

ITE it8586e programmable

ITE it8586VG programmable

ITE it8587e programmable

ITE it8589 programmable

ITE it8886H programmable

ITE it8886he programmable

ITE it8985e programmable

ITE it8987e programmable

ITE it8995E programmable

Nuvoton npce288na0dx programmable

Nuvoton npce388na0dx programmable

SMSC MEC1404-NU 128-VTQFP

SMSC MEC1404-SZ 144-WFBGA

SMSC MEC1406-NU 128-VTQFP

SMSC MEC1406-SZ 144-WFBGA

SMSC MEC1408-NU 128-VTQFP

SMSC MEC1408-SZ 144-WFBGA

SMSC MEC1414-NU 128-VTQFP

SMSC MEC1414-SZ 144-WFBGA

SMSC MEC1416-NU 128-VTQFP

SMSC MEC1416-SZ 144-WFBGA

SMSC MEC1418-NU 128-VTQFP

SMSC MEC1418-SZ 144-WFBGA

SMSC MEC1609 programmable

SMSC MEC1619 programmable

SMSC MEC1632 programmable

SMSC MEC1633 programmable

SMSC MEC1641 programmable

SMSC MEC1650 programmable

SMSC MEC1651 programmable

SMSC MEC1653 programmable

SMSC MEC5035 programmable

SMSC MEC5045 programmable

SMSC MEC5055 programmable

SMSC MEC5075 programmable

SMSC MEC1609 programmable

SMSC MEC1609i programmable

SMSC MEC1633L programmable

EPF011/021/035/036/037

SMSC MEC5085 non-programmable

Protocol: JEDEC ID (spi25 flash, and have 5 byte ID, spi NAND have 512 byte ID, nor48,40 have 3-byte id, emmc have 512-byte id, new spi25 have sfdp with 128-byte info).
